The pipe is threaded on both ends with one end featuring a socket and protective plastic cap, while its length can be customized according to the customer's preferences, ranging from 3 meters to 12 meters
The pipe or tubing can be customized to the customer's desired length, ranging from 3 meters to 12 meters, and features threads on both ends, a socket on one end, and a protective plastic cap on the other
Client can specify their desired length, ranging from 3 meters to 12 meters, for this pipe or tubing, which is threaded at both ends, socketed on one side, and protected with a plastic cap on the opposite end
The customer can choose any length between 3 meters to 12 meters for this pipe or tubing, which is threaded at both ends, features a socket on one side, and has protective plastic cap on the other end
Featuring threaded ends on both sides, a socket on one end, and safeguarded with a plastic cap on the other, this pipe or tubing can be customized to lengths between 3 meters and 12 meters, according to the customer's preferences
Customers have the option to specify their desired length, ranging from 3 meters to 12 meters, for this pipe or tubing. It features threads on both ends, a socket on one end, and is protected with a plastic cap on the other side
Customizable in length from 3 meters to 12 meters, this pipe or tubing comes with threads on both ends, a socket on one side, can be customized
This 5-meter-long pipe is designed with flat and smooth surfaces on both sides, making it ideal for nozzle cleaning applications
This 5-meter pipe possesses flat surfaces on both ends, optimizing its performance in applications requiring thorough cleaning
To schedule an appointment with us, please don't hesitate to reach out. Our professional team is here to assist you. You can contact us via phone or email, and we'll find a convenient time for you. We look forward to serving you!

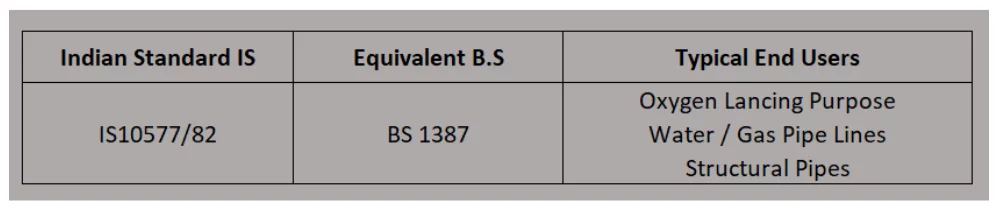

For Oxygen Lancing Purposes Conforming to IS-10577/82
Pipes are manufactured by high frequency induction welding process in a state-of-the-art automatic Tube Mill
|
N.B. |
Outside Diameter |
Wall Thickness |
Weight of Black Pipe |
||
|
Plain End |
Screwed & Socketed |
||||
|
mm |
MIN(mm) |
MAX(mm) |
mm |
Kg/M |
Kg/M |
|
8(L) |
13.2 | 13.6 | 1.8 | 0.517 | 0.521 |
| 8(M) | 13.2 | 14.0 | 2.35 | 0.650 | 0.654 |
| 8(H) | 13.2 | 14.0 | 2.9 | 0.769 | 0.773 |
| 10(L) | 16.7 | 17.1 | 1.8 | 0.674 | 0.680 |
| 10(M) | 16.7 | 17.5 | 2.35 | 0.852 | 0.858 |
| 10(H) | 16.7 | 17.5 | 2.9 | 1.02 | 1.03 |
| 15(L) | 21.0 | 21.4 | 2.0 | 0.952 | 0.961 |
| 15(M) | 21.0 | 21.8 | 2.65 | 1.22 | 1.23 |
| 15(H) | 21.0 | 21.8 | 3.25 | 1.45 | 1.46 |
| 20(L) | 26.4 | 26.9 | 2.35 | 1.41 | 1.42 |
| 20(M) | 26.5 | 27.3 | 2.65 | 1.58 | 1.59 |
| 20(H) | 26.5 | 27.3 | 3.25 | 1.90 | 1.91 |
| 25(L) | 33.2 | 33.8 | 2.65 | 2.01 | 2.03 |
| 25(M) | 33.3 | 34.2 | 3.25 | 2.44 | 2.46 |
| 25(H) | 33.3 | 34.2 | 4.05 | 2.97 | 2.99 |
| 32(L) | 41.9.0 | 42.5 | 2.60 | 2.54 | 2.57 |
| 32(M) | 42.0 | 42.9 | 3.20 | 3.10 | 3.13 |
| 32(H) | 42.0 | 42.9 | 4.00 | 3.79 | 3.82 |
| 40(L) | 47.8 | 48.4 | 2.90 | 3.23 | 3.27 |
| 40(M) | 47.9 | 48.8 | 3.20 | 3.56 | 3.60 |
| 40(H) | 47.9 | 48.8 | 4.00 | 4.37 | 4.41 |
For Oxygen Lancing Purposes Conforming to IS-10577/82
Pipes are manufactured by high frequency induction welding process in a state-of-the-art automatic Tube Mill
